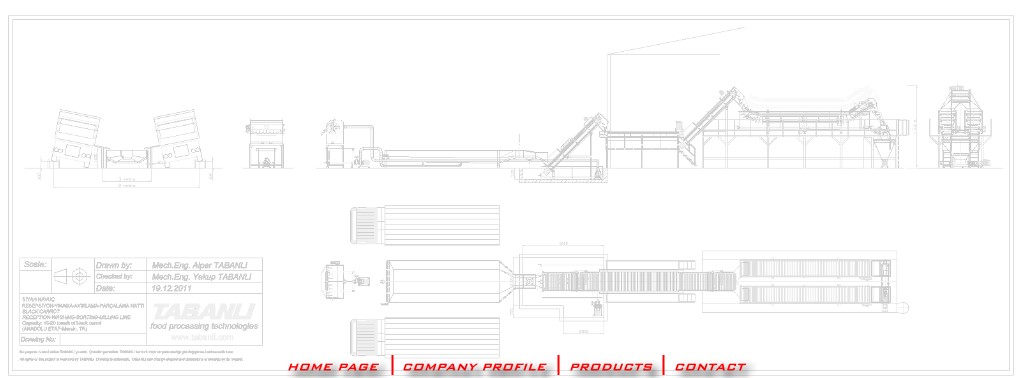

APPLE / RED & BLACK CARROT PROCESSING LINES (for Juice Industry)

up to 40-50 tons/h of black carrot or 80-100 tons/h of apple input capacity

pneumatic controlled channel gate system

Carrot

Apple

Rotary Drum Filter

for filtering of circulated pool water

Channel

for transporting of fruits with water

Reception Pool

for reception and feeding of line with water. It is specially for apple reception.

Centrifugal (Cyclone) Destoner & Drum Water Separator Unit

Rotary Drum Filter and Water circulating Unit

Bulk Feeder

for reception and feeding of line without water as dry. It is specially for carrot reception.

Elevator with st. steel product supported belt

Washer

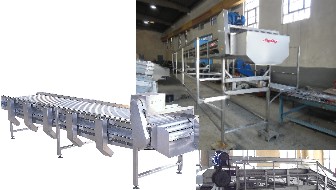

Roller Sorting Conveyor

Elevator with modular system plastic belt

can be manufactured with elevating section with shower and waste conveyor

Black Carrot

Black Carrot Concentrate

It is used for milling of various product such us black or red carrot, apple, pear, quinceand etc.

Carrot Blancher

Carrot Blancher is used for blanching of whole black carrot before milling as optional for some advantages.

Hammer Milling and Mohnopump Unit; up to 20-25 tons/h of black carrot or 40-50 tons/h of apple input capacity.

It increase up efficiency of juice for carrot and apple etc. Maintenance cost is too little; because of there is no knife cost.

Model. THM01 ; up to 10 tons/h of black carrot or 20-25 tons/h of apple input capacity.

Model. TCM06

Milling & Antioxidant Unit and Mash Tanks

Central Mill

It is used for milling of various product such us apple, pear, quince, black or red carrot and etc. Changeble knives set to stator. Rotory impeller grate fruit to the stator and grind fruit.

Central Milling and Mohnopump Unit; up to 100 tons/h of apple input capacity.

Model. TCM04

Model. TCM06 ; up to 30-40 tons/h of apple input capacity.

Model. TCM05 ; up to 10 tons/h of apple input capacity.

Model. TCM04 ; up to 5 tons/h of apple input capacity.

Mash is heated up by tube in tube type exchanger. Exchanger `s outer tubes for heater media transfer. Saturated Steam or Superheated water at 105C as Heater media. Also, You want us optional Superheated water crating and circulating unit consists of steam-water exchanger, proportional temperature controller, centrifugal pump water circulator etc.

Mash Heater / Coller Exchanger (Tube in tube)

Mash Tanks

Juice Tanks
