Technical deep dive: Green Bean Snipping & Declustering Configurations

Choosing the right equipment for green bean processing—specifically topping and tailing—is often the difference between a high-yield, long-shelf-life product and an operation plagued by product damage and excessive waste.

A common dilemma is selecting between a standard Snipper, a dedicated Cluster Cutter Pre-Snipper, and a combined Cluster Cutter Pre-Snipper-Snipper. This post breaks down the engineering behind each configuration and guides you to the correct choice for your product type

1. The Standard Snipper (Gentle Handling Configuration)

Best for: Hand-picked green beans and high-quality, pre-sorted product with no clusters.

The Standard Snipper is designed with one single priority: gentle handling to prevent product bruising.

Look closely at the internal design of the drum shown below. You will notice a defining characteristic on the edge of the internal divider rings.

Technical Insight: The defining feature of this configuration is the full length of the drum being equipped with PVC cords. These soft, flexible cords serve as a critical buffer between the green beans and the stainless steel internal structure. The beans only make contact with smooth plastic segments and the soft cords. This configuration provides the absolute gentlest handling possible, making it the ideal choice when shelf life and product appearance are critical and clusters are not an issue.

2. The Cluster Cutter Pre-Snipper (Aggressive Handling)

Best for: Industrial processing of mechanically harvested beans with a very high percentage of clusters/twins.

Mechanically harvested green beans often arrive at the facility tangled in "clusters" or attached in pairs. A standard snipper cannot process these effectively; they must be separated first. The Cluster Cutter Pre-Snipper is designed specifically for this aggressive, mechanical separation task.

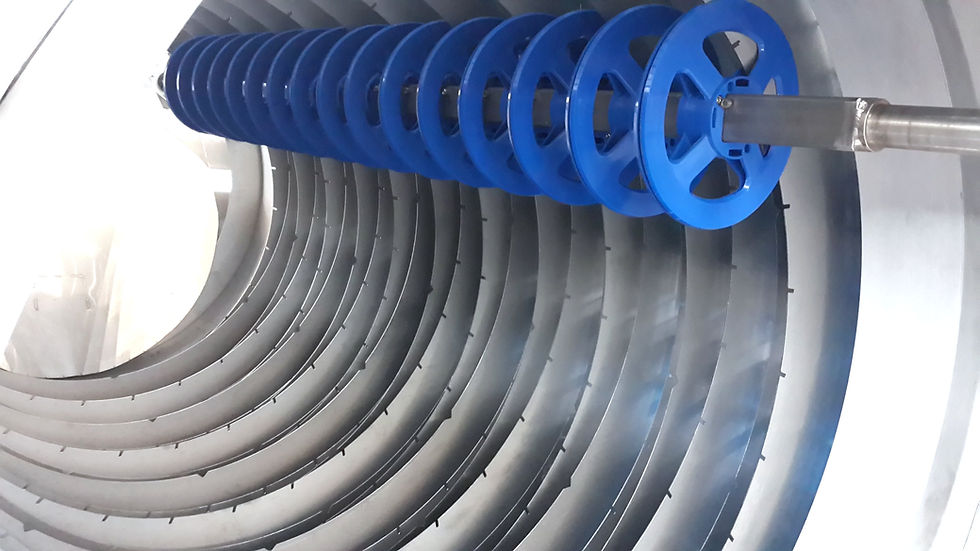

Contrast the interior design below with the Standard Snipper.

Technical Insight: In this configuration, all internal divider rings have notched stainless steel edges, and no PVC cords are used. A continuous array of motorized blue plastic declustering discs extends through the entire length of the drum. These discs mesh with the notched rings, creating intense mechanical agitation to pull clusters apart. The trade-off for this powerful declustering capability is more aggressive product handling. This machine is almost always used as a pre-processor, with the beans then feeding into a separate, dedicated snipper.

3. The Combined Cluster Cutter Pre-Snipper-Snipper

Best for: Processors with mechanically harvested product (clusters) but seeking a single-machine solution to maximize efficiency and minimize overall footprint.

The Combined machine is a clever engineering solution that integrates both functions into a single drum by dividing the drum longitudinally into two distinct zones. This design handles mechanical agitation (declustering) and gentle topping/tailing (snipping) in sequence.

Technical Insight: The first half of the drum is configured identically to the Cluster Cutter Pre-Snipper (notched steel rings, declustering discs) to provide the necessary mechanical agitation for incoming product. The motorized disc array only extends through this first section. Crucially, the second half of the drum is configured identically to the Standard Snipper (smooth PVC-cord protected rings). This single-machine solution provides effective declustering first and then transitions the beans to a gentle snipping section, striking an excellent balance between footprint and product quality.

Conclusion and Decision Matrix

When selecting your green bean processor, let the product harvest method and your tolerance for potential bruising guide your technical choice.

Machine Configuration	Critical Technical Feature	Best Application	Bruising Risk
Standard Snipper	Full-length PVC Cord protection	Hand-picked beans. Shelf life is paramount.	Zero to Minimal
Combined PreSnipper - Snipper	Dual-zone drum. Partial-length discs.	Mechanical harvest. Single-machine efficiency.	Low to Moderate
Cluster Cutter PreSnipper	Full-length notched steel rings + Full-length discs.	Intense industrial cluster removal. (Used as pre-processor).	Moderate to High
